LED Pixel Pitch: 4.81mm 500x1000

LED Screen Viewing Angle: 160 Degrees Horizontal

Screen Brightness: 8,000 nits

Screen Resolution: 1040x624p

Video Screen Size: 17'x10'

Video Switcher: KanexPro 4x1 HDMI Switcher with 4K Support & Audio Output

Video Inputs: 2 HDMI inputs, 1 SDI input, 1 SDI output

Video Outputs: HDMI, SDI

Audio Inputs: XLR, RCA, 1/4 in. and 1/8 in.

LED Trailer Production Box

IP65 rated enclosure with exhaust fan: 30" x 30" x 34"

2U storage drawer

Furman M-8Lx Merit X Series 8 outlet power conditioner

Novastar VX600 LED controller

Dell Inspiron 14 5000 laptop

Screen Height: Total lift to bottom of screen is about 10’, From the deck of the trailer is 8’ to bottom of the screen

Video Trailer footprint: 25' L x 8' W x 12' H

Hydraulic lift: 360 rotation, 10' trim height

Trailer weight: 8,500 lbs

Two 5.2k torsion axles with electric brakes

Mag wheels upgrade

Bulldog 4k electric tongue jack + four electric leveling jacks

Generator: Powertech Super Quiet 20 kW with shroud

Fuel Capacity: 30 Gal

Onboard storage box: measuring 36" x 27" x 31"

Weather Certification: IP67 (Ingress Protection)

P.E. stamped: 45 mph wind rating

Operating life: 100,000 hours

Spare parts including: modules, hubpacks, and data/power jumpers

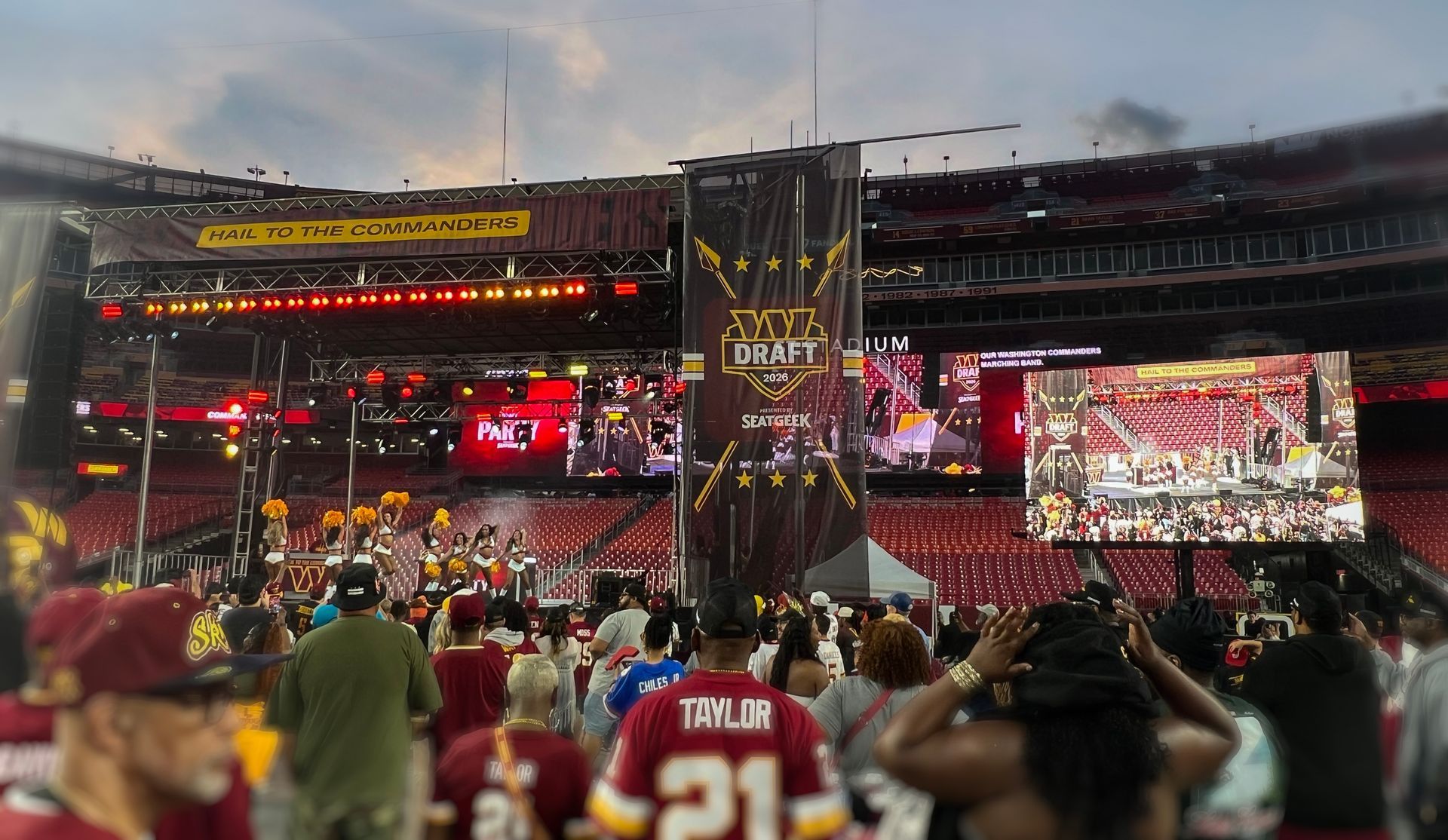

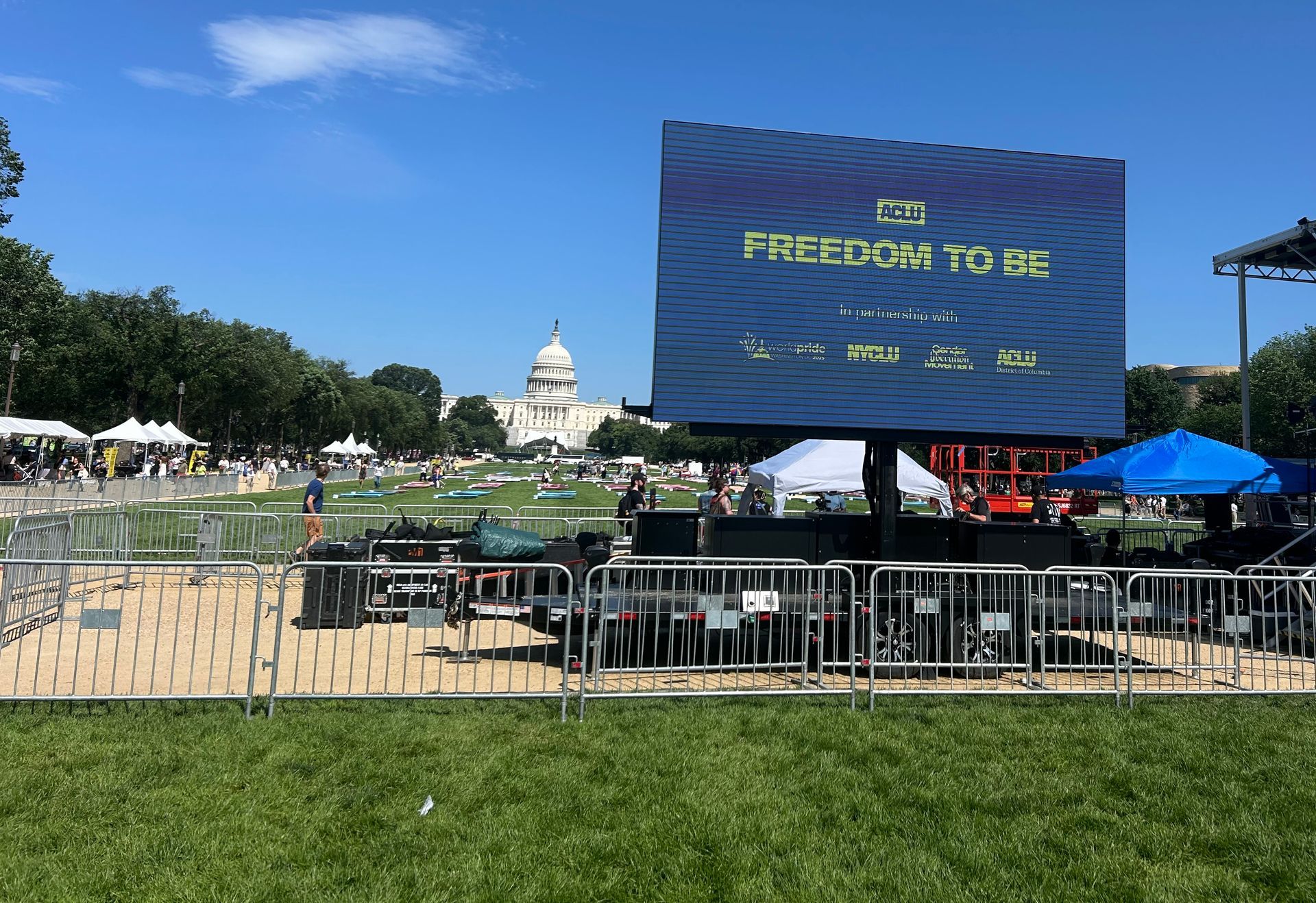

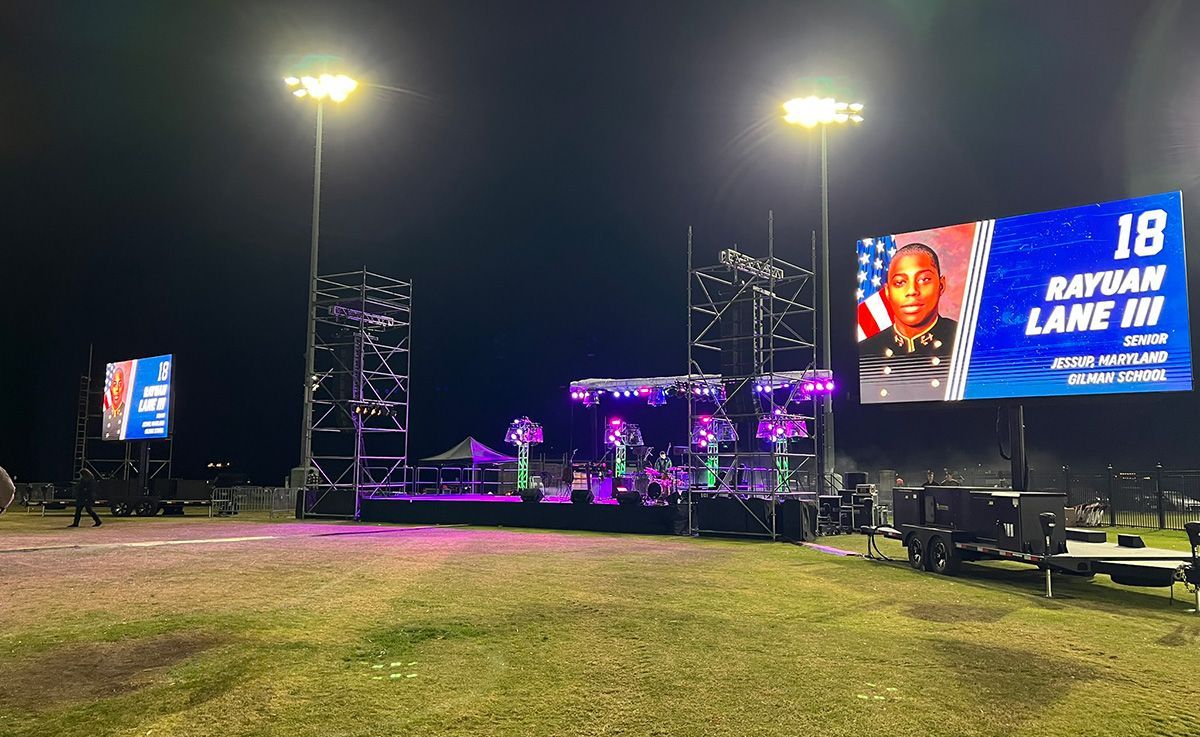

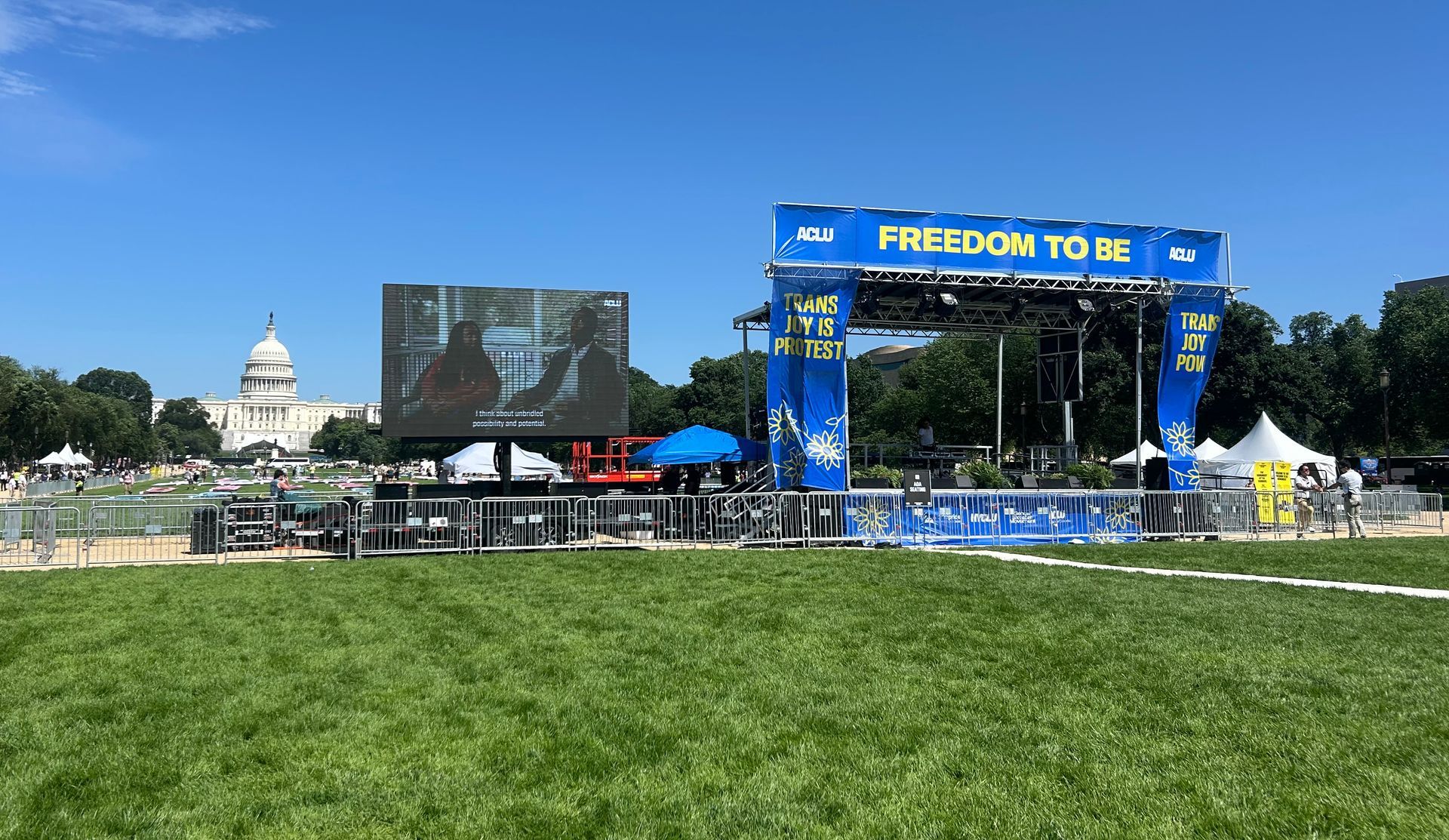

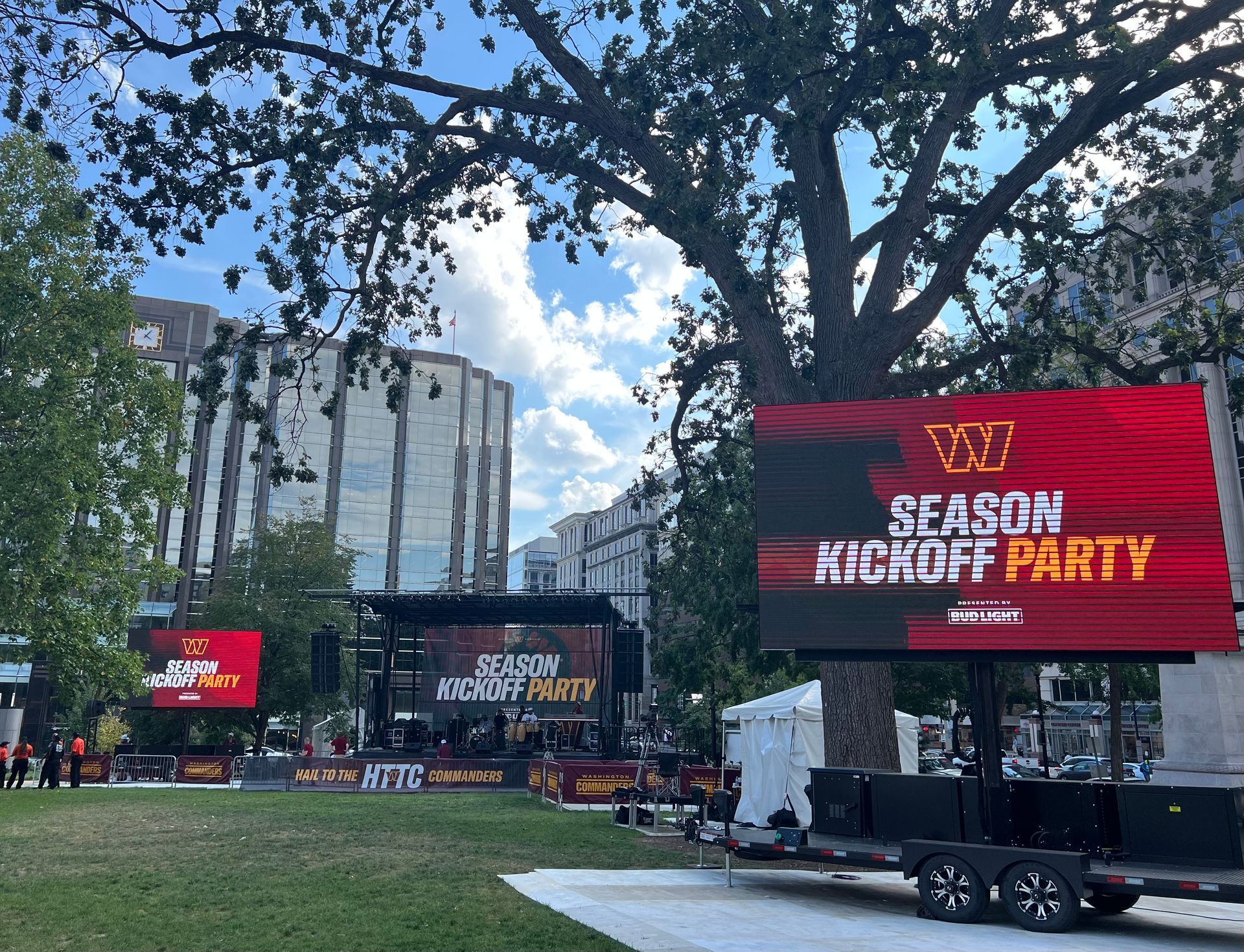

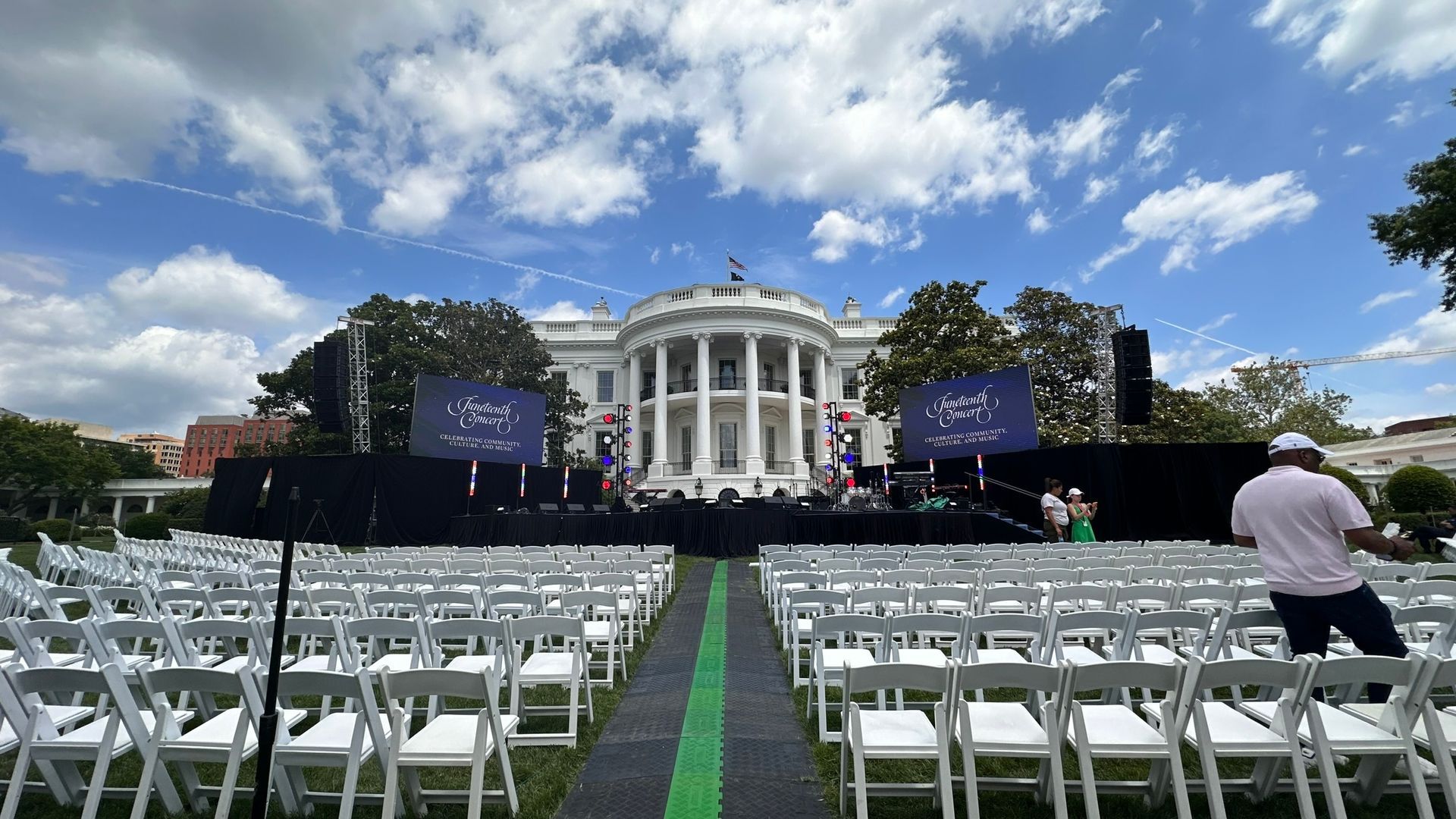

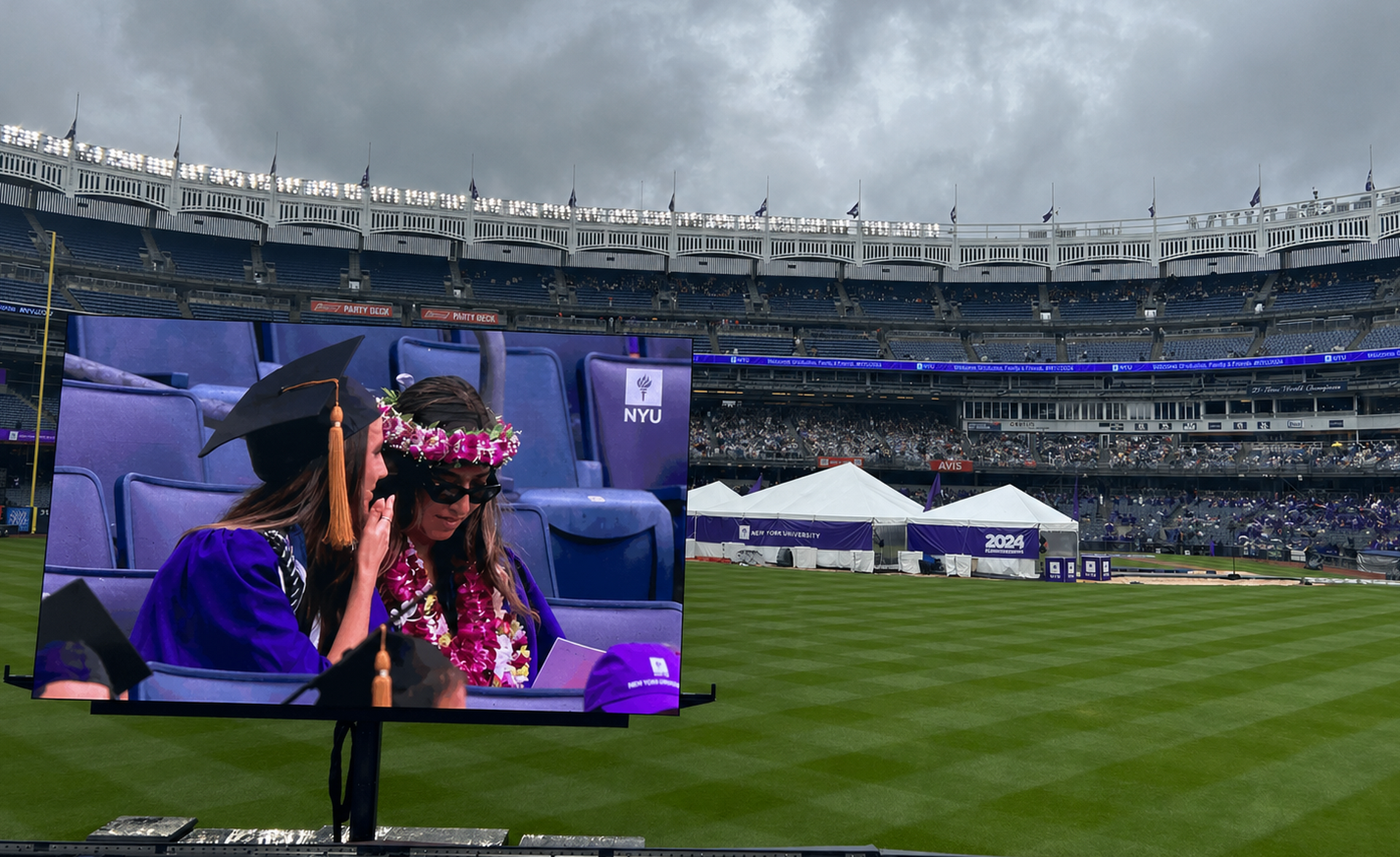

17x10 LED Trailer Photos
